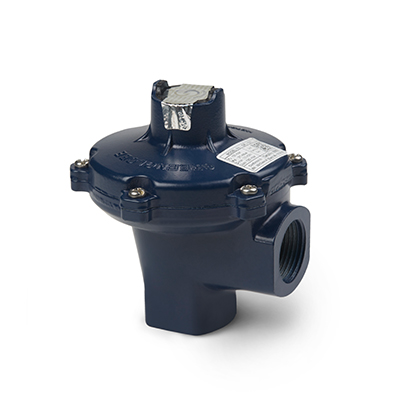

Single stage pressure regulator with spring control & diaphragm with inbuilt pressure balance regulating unit to ensure a constant outlet pressure
| Application | Domestic | |
|---|---|---|
| General | Design | Single stage pressure regulator with spring control & diaphragm with inbuilt pressure balance regulating unit to ensure a constant outlet pressure |
| Connection Orientation | Inlet & Outlet connection at 90° | |
| Installation | Suitable for indoor installations, tamper proof and corrosion resistanc |
|
| Installation Position | Horizontal/Vertica | |
| Flow | Capacity | Up to 6 m3/hr |
| Pressure & Temperature | Intel Pressure Range | 26 – 350 mbar(g) |
| Nominal Outlet Pressure | 21 mbar (g) | |
| Under Pr. Shut off Range (UPSO) | 11 – 15 mbar | |
| Operating Temperature | 0°C to 60°C | |
| Connections | Inlet X Outlet | 3/4” BSPT(F) X 3/4” BSPT(F) ;As per Customer Requirement |
| Material | Casing | Pressure Die Casted Aluminium Alloy |
| Internals | Elastomers | Nitrile Rubber |
| Internals | Aluminium & Delrin | |
| Others | Suitable For | Natural Gas & LPG |
| Filter | In-Built | |
| General | Failure Position | Closed |
| Type of Reset | Auto Reset |
