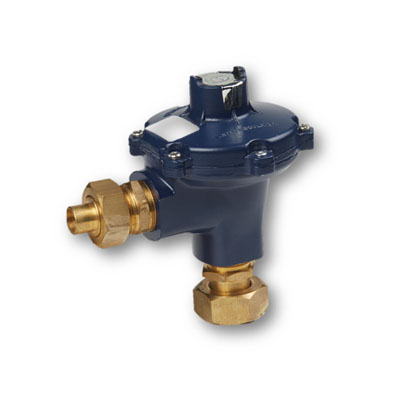

GR 101 (PRE-FITTED)


GR 101 (PRE-FITTED)

(0)

Single stage pressure regulator with spring control & diaphragm with inbuilt pressure balance regulating unit to ensure a constant outlet pressure

GR 101

ApplicationDomestic
GeneralDesignSingle stage pressure regulator with spring control &
diaphragm with inbuilt pressure balance regulating unit
to ensure a constant outlet pressure
Connection OrientationInlet & Outlet connection at 90°
InstallationSuitable for indoor installations, tamper proof and
corrosion resistanc
Installation PositionHorizontal/Vertica
FlowCapacityUp to 6 m3/hr
Pressure & TemperatureIntel Pressure Range26 – 350 mbar(g)
Nominal Outlet Pressure21 mbar (g)
Under Pr. Shut off Range (UPSO)11 – 15 mbar
Operating Temperature0°C to 60°C
ConnectionsInlet X Outlet3/4” BSPT(F) X 3/4” BSPT(F) ;As per Customer
Requirement
MaterialCasingPressure Die Casted Aluminium Alloy
InternalsElastomersNitrile Rubber
InternalsAluminium & Delrin
OthersSuitable ForNatural Gas & LPG
FilterIn-Built
GeneralFailure PositionClosed
Type of ResetAuto Reset
